适用范围与介简/Brief Introduction：

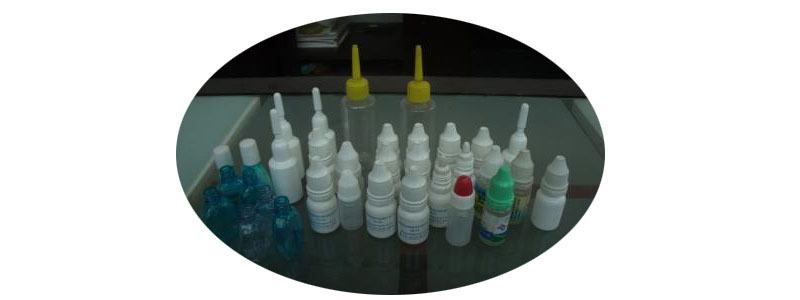

滤油机适用性于2-30ML各式板材的一个圆形扁形塑胶或玻璃窗瓶的眼灵药包装生产线、电子厂烟油等小标准容量包装生产线.滤油机由高精密度气缸单位量程单位供应量程等分盘地位上塞上盖;加速器度气缸单位齿轮变速箱供应旋盖头的什降;恒扭距旋盖;蠕动消化泵计算包装生产线;接触屏管控.无瓶不包装生产线,不放内塞,外盖.具地位正确,齿轮变速箱稳定性,守护盖子,计算准.的操作十分简单等长处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

基本特征/Characteristic：

◆微租赁添加、装量透彻、基本操作不方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆冷水机轉速可做变频柜变频柜调节。the mainframe running speed is stepless frequency conversion.◆加工量一键参考值管控。the product quantity can be controlled. ◆多重系统故障警告功效(如低大气压。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑自動停止设备运转用途，对某个行列存在反复无灌装生产线、无内塞情况下可电脑自動停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

系统产品参数/Main Technical Parameters：

适于技术参数Filling Volume	2-30ml
出产能分析力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线准确度Filling Precision	≤±1%
交流电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动式上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
马力 Power	2.0 kw
丝机总重量Weight	550 kg
样貌长度Dimension	1800*1000*1500mm
